Iris Keyboard Build

Read Time: 1 minutes

Deviating from the typical code-centric post, I wanted to share my latest keyboard build. It is the Iris from keebio.

Here is the final result, equipped with Kailh speed silver switches and DSA keycaps. For those who might be interested doing a build themselves, keebio provides a thorough Build Guide.

Iris - final result

A build isn’t complete without a key mapping. Below is the current iteration of layer definitions, using QMK firmware. Finding the best layout can be a continual work in progress, but I’m happy with the layout so far.

Keymap - Layer0

Keymap - Layer1

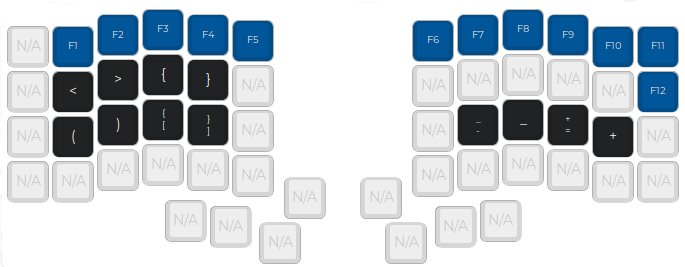

Keymap - Layer2

As a bonus, I’ve included a couple build process images, shown in reverse chronological order.

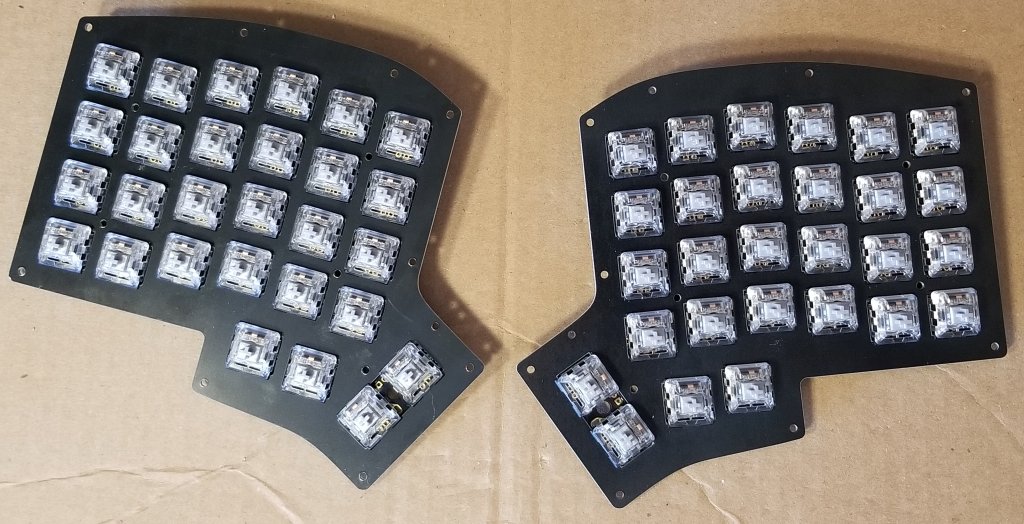

Mounted Switches

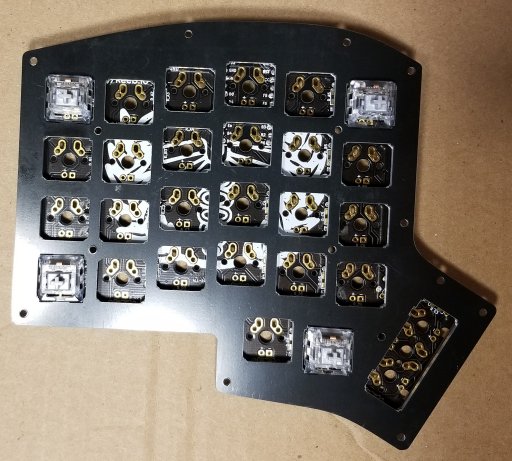

Mounting Switches

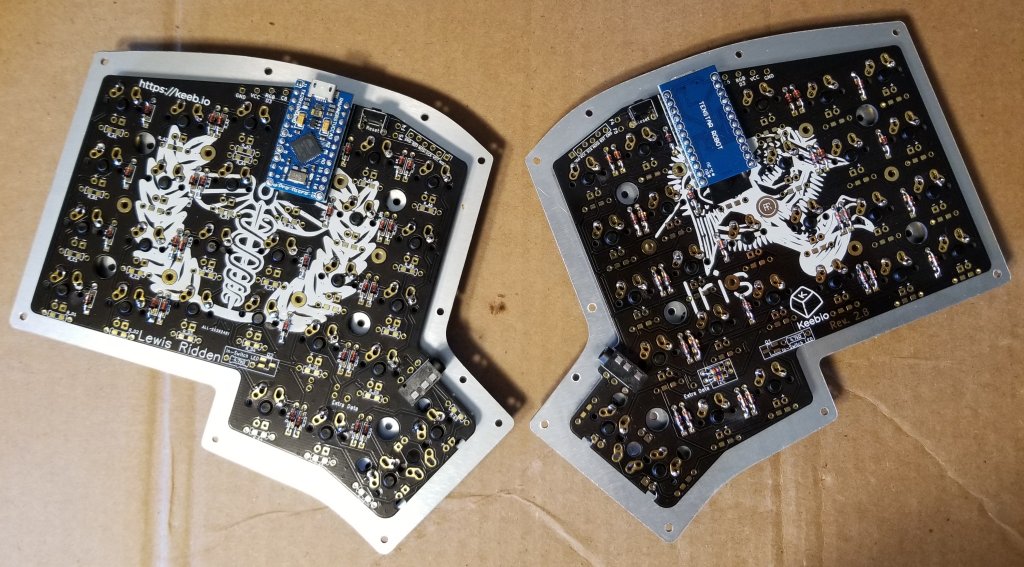

Mounted ProMicros

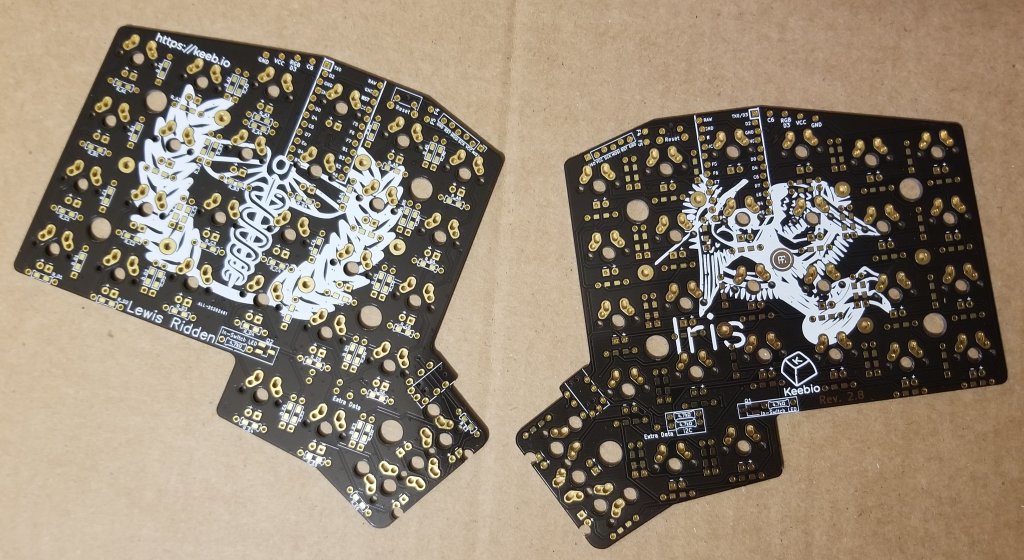

Circuit Boards

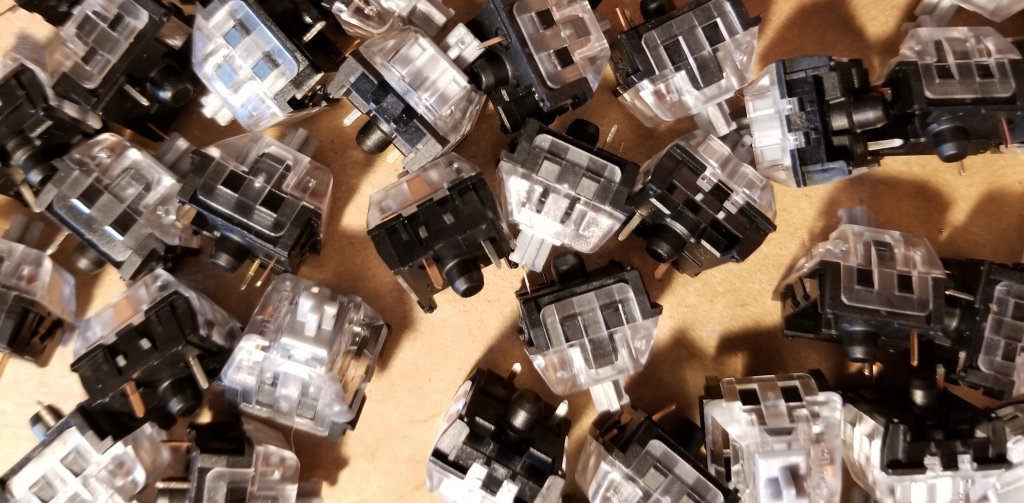

Kailh Speed Silver Switches
