BF Compiler Part 4 - Optimization

Read Time: 12 minutes

Now that the BF compiler is together, it’s time to add some obvious optimizations.

Series:
Part 1 (Parsing)
Part 2 (IL Generation)
Part 3 (Compiler)
Part 4 (Optimization)

I’m going to approach this post a bit differently than most before it. Typically a post’s code stands on its own, but this post is largely a refactor of Part 3. I’ll focus on the diffs necessary to implement the desired optimizations. Along the way I’ll add some handy debugging code. Before I get started, this post assumes knowledge from the previous posts (especially post 3), so feel free to go back and peruse earlier posts in this series. Getting started, I want optimizations to be optional.

1
let optimizationsEnabled = true

First up, the internal BF language representation as F#’s discriminated unions. I add addtional the intermediate representation (IR) ops to support my optimizations and debugging support. There are a multitude of optimizations that can be done. For this post I’m only going to focus on folding contiguous pointer shifts, contiguous data increment/decrements, setting a cell to zero. In addition to these optimizations, I add a debug print ? that works like ., but prints the int value instead of the standard char. It is mildly controversial to extend BF, but I find this is a minimally helpful tool for debugging.

I’ve decided, for demonstrative purposes, to extend the IR instead of replace existing operators. Where you see operators such as Gtx or Plusx, I could have just as easily rewired the existing Gt and Plus, respectively. In a more formal setting, I would’ve most likely refactored the existing operators. It makes for a cleaner codebase, but this method allows me to show a couple more F#isms.

Extended Examples:

>>>> : Compresses to Gtx 4

<<<> : Compresses to Ltx 3

++++ : Compresses to Plusx 4

++- - : Compresses to Nop (Since they cancel out, there isn’t anything to do.)

[-] : Compresses to Set0 (This is a common way to set a cell to 0. I can do a direct set without looping.)

Once I create the extended operators, I add them to AllOps DU. I also add a “No Op” operator (Nop) for cases where my folds zero out.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
type ExtendedOps =
    | Gtx of int
    | Ltx of int
    | Plusx of int
    | Minusx of int
    | Set0
    | DebugPrint
type AllOps =
    | Op of ActionOps
    | Loop of AllOps list
    | Program of AllOps list
    | Comment
    | Extended of ExtendedOps
    | Nop

Here is one of the places where F# shines, code correctness. Now that I’ve added these types, my code doesn’t compile anymore. The error message is this: Incomplete pattern matches on this expression. For example, the value ‘Extended (_)’ may indicate a case not covered by the pattern(s). Looking at the code below you can see I have a match expression against the AllOps type, but I clearly don’t handle all cases, namely the ones I just added. I knew this was the case, but I’m happy when the compiler can figure out these cases. In a larger codebase that might not even be mine, this is a powerful dynamic.

1
2
3
4
5
6
and processAst (ilGenerator:ILGenerator) (data:MemArray) (dataPointer:DpPointer) (ast:AllOps) =
    match ast with
    | Op op         -> emitOp ilGenerator op data dataPointer
    | Loop block    -> emitLoop ilGenerator data dataPointer block
    | Program block -> emitOpList ilGenerator data dataPointer block
    | Comment       -> ()

Here is the new version of the match, problem solved. This obviously causes it’s own cascading effect, now I need a emitExtendedOp function.

1
2
3
4
5
6
7
8
and processAst (ilGenerator:ILGenerator) (data:MemArray) (dataPointer:DpPointer) (ast:AllOps) =
    match ast with
    | Op op         -> emitOp ilGenerator op data dataPointer
    | Loop block    -> emitLoop ilGenerator data dataPointer block
    | Program block -> emitOpList ilGenerator data dataPointer block
    | Comment       -> ()
    | Nop           -> ()
    | Extended op   -> emitExtendedOp ilGenerator op data dataPointer

I handle the extended operators in a similar fashion to normal operators. This also a prime time for a minor refactor. Pointer shifts and data increment/decrements for the extended versions are identical to the orignal ones except for the amount. As a result I will make the emit[Gt|Lt|Plus|Minus] to be more generic, and take a modifer amount.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
// Generate IL for an operator
let emitOp (ilGenerator:ILGenerator) (op:ActionOps) (data:MemArray) (dataPointer:DpPointer) =
    match op with
    | Gt    -> emitGt ilGenerator dataPointer 1
    | Lt    -> emitLt ilGenerator dataPointer 1
    | Plus  -> emitPlus ilGenerator data dataPointer 1
    | Minus -> emitMinus ilGenerator data dataPointer 1
    | Read  -> emitComma ilGenerator data dataPointer
    | Write -> emitPeriod ilGenerator data dataPointer

let emitExtendedOp (ilGenerator:ILGenerator) (op:ExtendedOps) (data:MemArray) (dataPointer:DpPointer) =
    match op with
    | Gtx i      -> emitGt ilGenerator dataPointer i
    | Ltx i      -> emitLt ilGenerator dataPointer i
    | Plusx i    -> emitPlus ilGenerator data dataPointer i
    | Minusx i   -> emitMinus ilGenerator data dataPointer i
    | Set0       -> emitSetx ilGenerator data dataPointer 0
    | DebugPrint -> emitDebugPrint ilGenerator data dataPointer

Continuing the cascading changes, I refactor the operator-specific emit functions. These all have the same refactor to include the parameter and use that instead of the fixed value of 1:

  1. Add (i:int) as a parameter

  2. Replace ilGenerator.Emit(OpCodes.Ldc_I4_1) with ilGenerator.Emit(OpCodes.Ldc_I4, i)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
// Increment dataPointer
let emitGt (ilGenerator:ILGenerator) (DP(dataPointer):DpPointer) (i:int) =
    addLocalInt ilGenerator dataPointer i

// Decrement dataPointer
let emitLt (ilGenerator:ILGenerator) (DP(dataPointer):DpPointer) (i:int) =
    subLocalInt ilGenerator dataPointer i

// Increment value in data[dataPointer]
let emitPlus (ilGenerator:ILGenerator) (MEM(data):MemArray) (DP(dataPointer):DpPointer) (i:int) =
    // Load array reference for setting
    ilGenerator.Emit(OpCodes.Ldloc, data)
    ilGenerator.Emit(OpCodes.Ldloc, dataPointer)

    // Load value of array
    ilGenerator.Emit(OpCodes.Ldloc, data)
    ilGenerator.Emit(OpCodes.Ldloc, dataPointer)
    ilGenerator.Emit(OpCodes.Ldelem_I4)

    // Add i to value
    ilGenerator.Emit(OpCodes.Ldc_I4, i)
    ilGenerator.Emit(OpCodes.Add)

    // Save back into array
    ilGenerator.Emit(OpCodes.Stelem_I4)

// Decrement value in data[dataPointer]
let emitMinus (ilGenerator:ILGenerator) (MEM(data):MemArray) (DP(dataPointer):DpPointer) (i:int) =
    // Load array reference for setting
    ilGenerator.Emit(OpCodes.Ldloc, data)
    ilGenerator.Emit(OpCodes.Ldloc, dataPointer)

    // Load value of array
    ilGenerator.Emit(OpCodes.Ldloc, data)
    ilGenerator.Emit(OpCodes.Ldloc, dataPointer)
    ilGenerator.Emit(OpCodes.Ldelem_I4)

    // Subtract i to value
    ilGenerator.Emit(OpCodes.Ldc_I4, i)
    ilGenerator.Emit(OpCodes.Sub)

    // Save back into array
    ilGenerator.Emit(OpCodes.Stelem_I4)

Implementing emitSetx takes a value and does an explict value set to data[dataPointer].

1
2
3
4
5
6
7
8
9
10
11
// Set value at data[dataPointer]
let emitSetx (ilGenerator:ILGenerator) (MEM(data):MemArray) (DP(dataPointer):DpPointer) (i:int) =
    // Load array reference for setting
    ilGenerator.Emit(OpCodes.Ldloc, data)
    ilGenerator.Emit(OpCodes.Ldloc, dataPointer)

    // Value to set
    ilGenerator.Emit(OpCodes.Ldc_I4, i)

    // Save into array
    ilGenerator.Emit(OpCodes.Stelem_I4)

The debug print provides two pieces of information, the current dataPointer value and the integer value at data[dataPointer]. String.Format is a bit more involved than some of the other function calls. I need to load the format string, and box the corresponding integer values. Then I can do a Console.WriteLine of the formatted string with the variable values injected.

1
2
3
4
5
6
7
8
9
10
11
// Print decimal value at data[dataPointer] & index value to stdout
let emitDebugPrint (ilGenerator:ILGenerator) (MEM(data):MemArray) (DP(dataPointer):DpPointer) =
    ilGenerator.Emit(OpCodes.Ldstr, "[{0}]  {1}")
    ilGenerator.Emit(OpCodes.Ldloc, dataPointer)
    ilGenerator.Emit(OpCodes.Box, typeof<int>)
    ilGenerator.Emit(OpCodes.Ldloc, data)
    ilGenerator.Emit(OpCodes.Ldloc, dataPointer)
    ilGenerator.Emit(OpCodes.Ldelem_I4)
    ilGenerator.Emit(OpCodes.Box, typeof<int>)
    ilGenerator.EmitCall(OpCodes.Call,typeof<String>.GetMethod("Format", [| typeof<string>; typeof<Object>; typeof<Object> |]), null);
    ilGenerator.EmitCall(OpCodes.Call,typeof<Console>.GetMethod("WriteLine", [| typeof<string> |]), null);

Now that I have addressed the compilation issues and all the new emitting code, it’s time to look at the parsing code. I would typically separate parsing from optimization, making it a secondary step in the compilation. But BF is so simple, plus I can tie this back to the original goal, leverage FParsec.

The parser changes leverage existing parsers and then implement additional logic on top. pGreaterLesser reads any number of consecutive > and <, then it counts them and determines the difference. This results in the optimized operator Gtx, Ltx, or Nop. pPlusMinus works the same way. pSet matches “[-]” (loop at current position until data[dataPointer] = 0), it a straightforward match, but you may notice this is a pstring, versus pchar match. pDebugPrint is a character match. After adding the new parsers, it’s a matter of just wiring them into their respective parser groups. This is also where I check to see if optimizations are enabled or not.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
   let commentChar c =
       c <> '>' &&
       c <> '<' &&
       c <> '+' &&
       c <> '-' &&
       c <> '[' &&
       c <> ']' &&
       c <> '.' &&
       c <> ',' &&
       c <> '?'

   let pComment:Parser<_> =
       many1Satisfy commentChar |>> fun _ -> Comment

let pGreaterLesser:Parser<_> =
       many1 (pGreater <|> pLesser) |>> fun x ->
           let gCount = (x |> List.filter (fun y -> y = Op Gt)) |> List.length
           let lCount = (x |> List.filter (fun y -> y = Op Lt)) |> List.length
           if gCount = lCount then Nop
           elif gCount > lCount then Extended (Gtx (gCount - lCount))
           else Extended (Ltx (lCount - gCount))

   let pPlusMinus:Parser<_> =
       many1 (pPlus <|> pMinus) |>> fun x ->
           let pCount = (x |> List.filter (fun y -> y = Op Plus)) |> List.length
           let mCount = (x |> List.filter (fun y -> y = Op Minus)) |> List.length
           if pCount = mCount then Nop
           elif pCount > mCount then Extended (Plusx (pCount - mCount))
           else Extended (Minusx (mCount - pCount))

   let pSet0:Parser<_> =
       pstring "[-]" |>> fun _ -> Extended Set0

   let pDebugPrint:Parser<_> =
       pchar '?' |>> fun _ -> Extended DebugPrint

   let pCommands =
       if optimizationsEnabled
       then pGreaterLesser <|> pPlusMinus <|> pSet0 <|> pGreater <|> pLesser <|> pPlus <|> pMinus <|> pPeriod <|> pComma
       else pGreater <|> pLesser <|> pPlus <|> pMinus <|> pPeriod <|> pComma

   do pLoopImpl := pLBracket >>. (many (pCommands <|> pLoop <|> pComment <|> pDebugPrint)) .>> pRBracket |>> fun x ->
       Loop x

   // Build ast from source code
   let buildAst code =
       run (many (pCommands <|> pLoop <|> pComment <|> pDebugPrint)) code

With refactoring complete, I look at the Hello World program from the last post. First, debug prints.

1
let code  = "++++++++++++?[>++++++>++++++++>+++<<<-]>?>?>?<<.>+++++.+++++++..+++.>----.<<+++++++++++++++.>.+++.------.--------.>+."

Hello World - Debug

Second, a look at the optimizations. I perform two compilations; one normal, one optimized. The results are what I’d expect to see. This sample is so short there isn’t really a peformance gain, the code is is just cleaner. On a more intense application, it’s easy to see how this code compression could add up to at least a minimal performance boost.

1
let code  = "++++++++++++[>++++++>++++++++>+++<<<-]>.>+++++.+++++++..+++.>----.<<+++++++++++++++.>.+++.------.--------.>+."

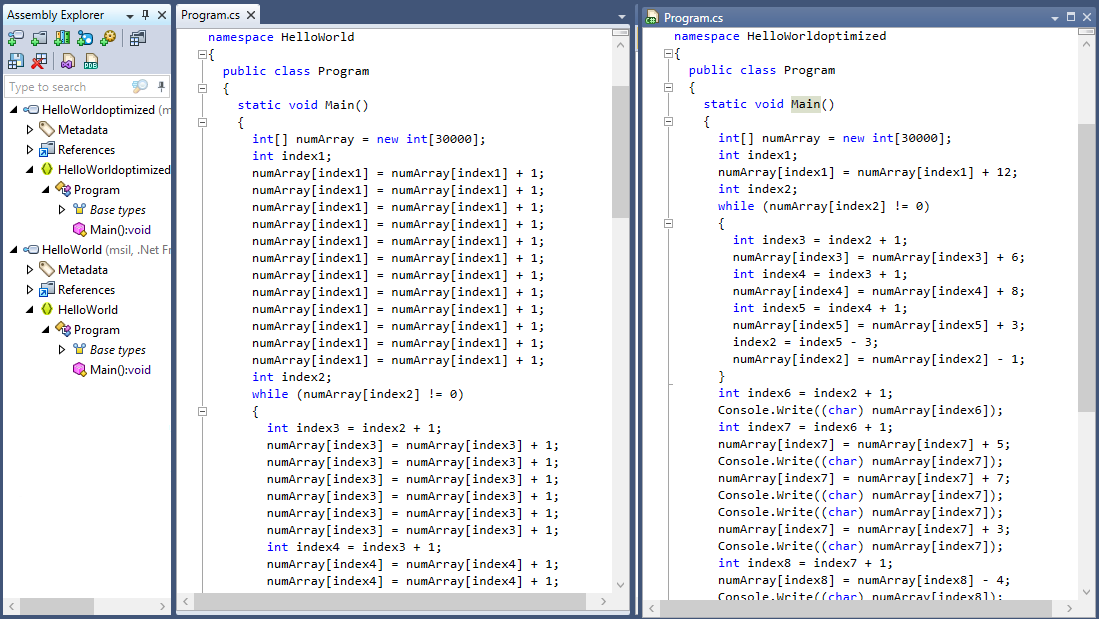

Below shows the compilation differences of the normal versus optimized compilation.
Hello World - Optimization

There is it. A simple refactor to add debugging and minor optimizations. I didn’t expect this to be much work, but it is nice how F# can guide me along the refactor, once I have my intentions defined. I hope you found this post to be at least a mildly useful example of the power of F# and FParsec. Until next time.
